pressure balanced expansion joint DN800 on a gas turbine
With our extensive experience and know-how of industry standards and specific applications, Flexomat GmbH calculates, designs and manufactures a wide range of expansion joints for power plant technology.
Among other things, lateral and angular expansion joints are used in overflow lines to reduce the loads on the turbine nozzle.
We provide assistance in the use of expansion joints when it comes to selection and proper installation.
In all planning and engineering offices, the types of our expansion joints are stored in the pipe calculation program ROHR2.

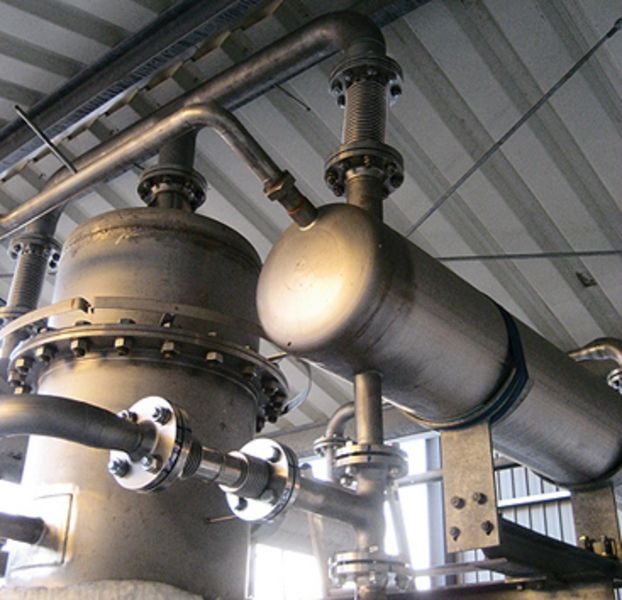

chemical plant
power plant

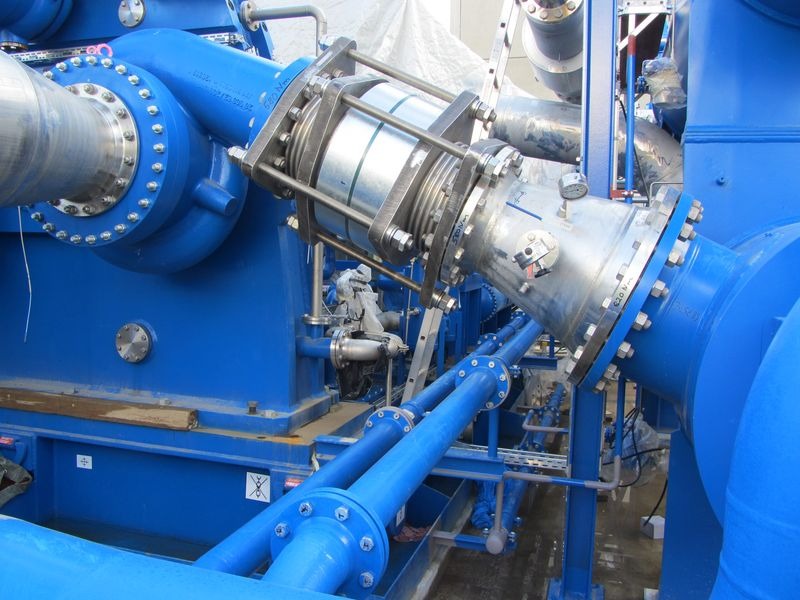

pressure balanced expansion joint DN800 on a gas turbine

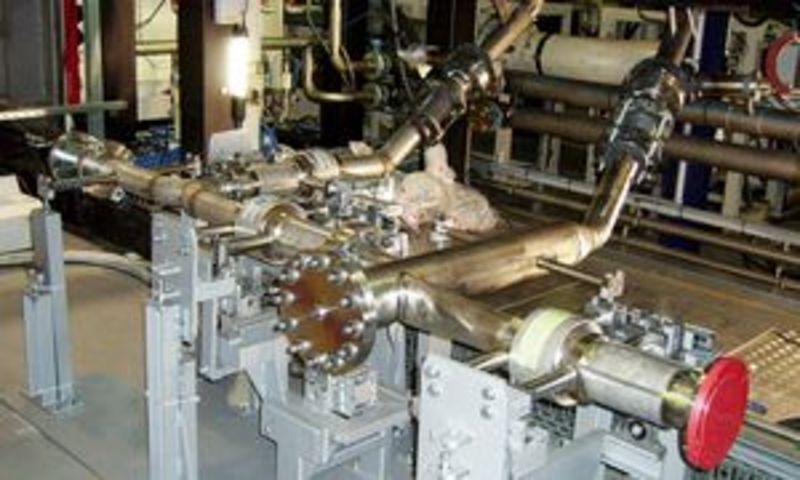

oil and gas industries
axial expansion joint for an tension-free installation
biogas plants
air systems

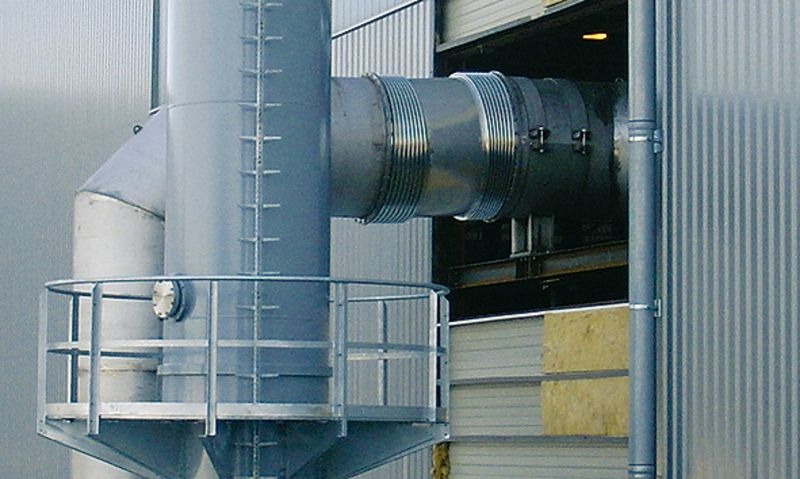

air intake system with universal expansion joints DN600
exhaust technology (large engines, shipping industry)

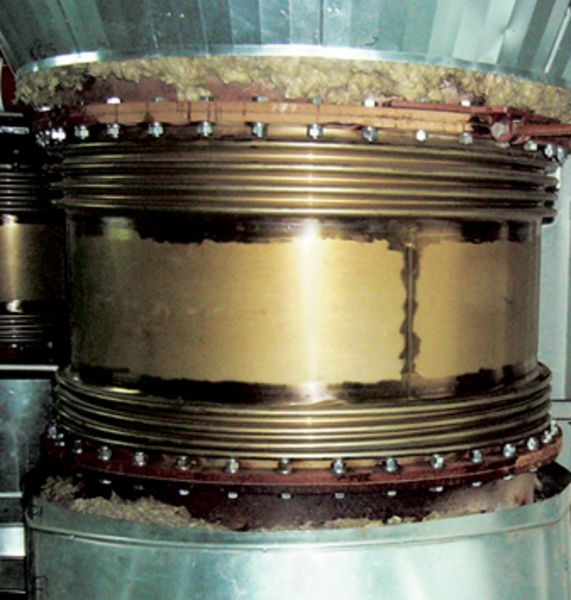

exhaust system with DN1000 universal expansion joint
Lateral expansion joints
absorb movements vertical to the bracing plane
Angular expansion joints
absorb axial offset through angular movement
Axial expansion joints
compensate assembly tolerances and thermal longitudinal expansion in the direction of the tube axis.
Universal expansion joints
absorb simultaneous axial, lateral and angular movements
Special designs
are used in particularly demanding applications or customer requests.
